The hanging stand is one of the most convenient tools to store doll products. Storage by hanging the dolls can avoid skin material damage caused by long-time extrusion and effectively save space.

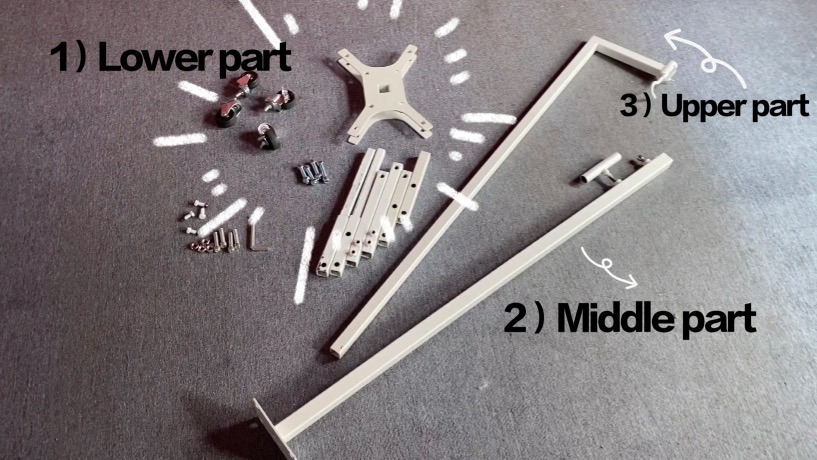

SEDoll’s hanging stand includes three components: (1) the lower part with casters for movement, (2) the middle part for fixing and connecting, and (3) the upper part for connecting hooks. The length of the lower part can be adjusted according to the weight of the doll (adjustable up to 15cm); the length of the upper part can be adjusted by the height of the doll (between 100cm to 190cm). The maximum load capacity of the hanging stand is 80kg.
2. Installation Instructions

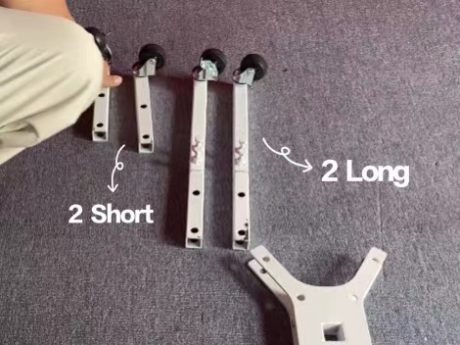

a. Bottom stand (including 4 pieces in total: 2 iron rods (long) & 2 iron rods (short) (video position: 00:09)

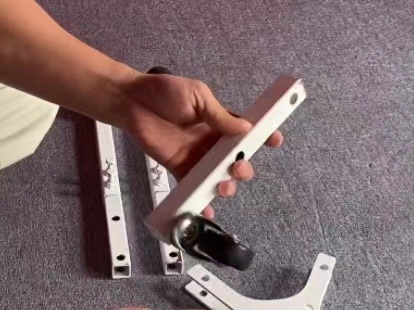

Install two casters (use one caster with a locking switch and one without) on one end of the two shorter iron rods.

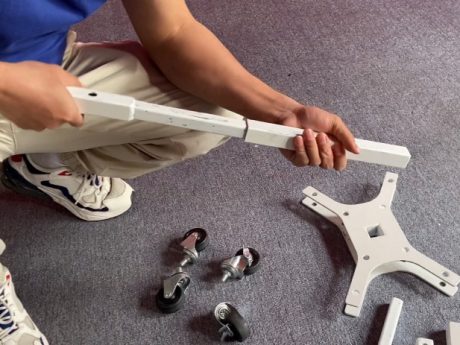

The long iron rod comes with adjustable features, consists of two sections (connected by two white screws). To adapt and balance the weight of the doll, the long iron rods can be adjusted into different lengths (adjustable up to 15cm).

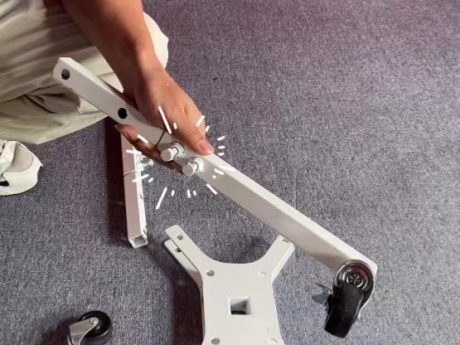

For the lighter doll, the adjustable rods should be shortened, and for the heavier doll, the adjustable rods should be extended to adapt to the weight. After adjusting and tightening the screws, install the two casters to the long iron rods (use one caster with a locking switch and one without).

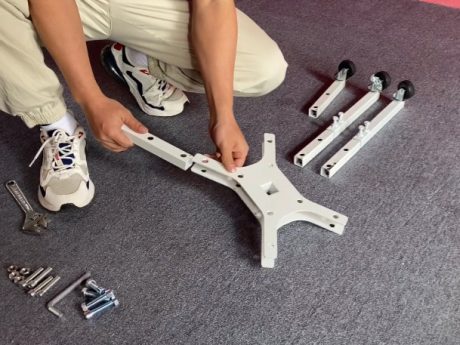

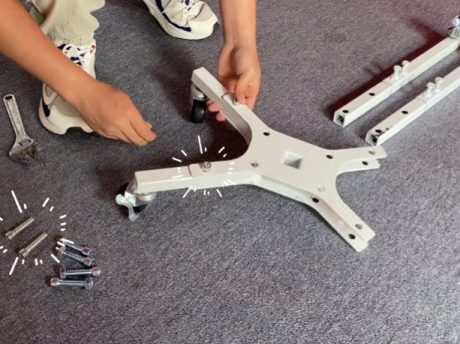

After assembling the four iron rods, buckle them into the center-piece, and install them into the four holes, fasten with silver screws.

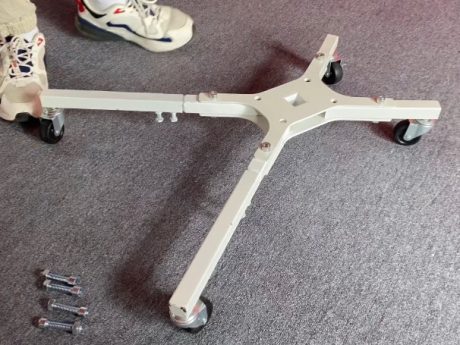

As shown in the figure after installation:
b. The middle of the stand (video position 03:45)

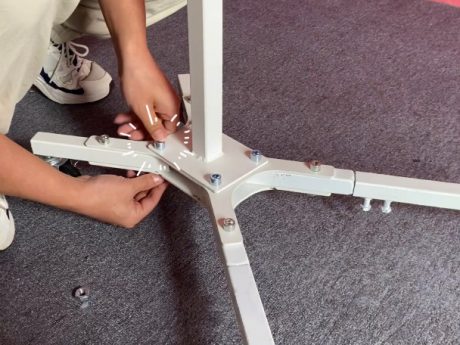

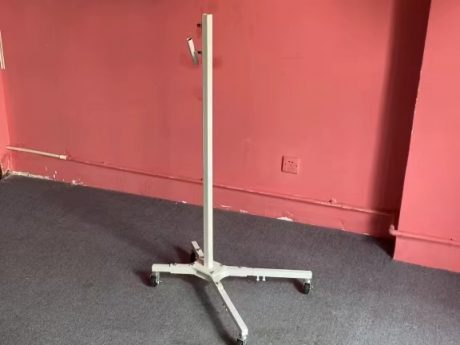

The handle of the middle part (metal column) must be facing the same side as the shorter iron rods of the bottom stand. Align the four holes of the middle part with the four holes of the bottom stand, and fasten them with blue screws.
c. The upper part of the stand (video position 04:02)

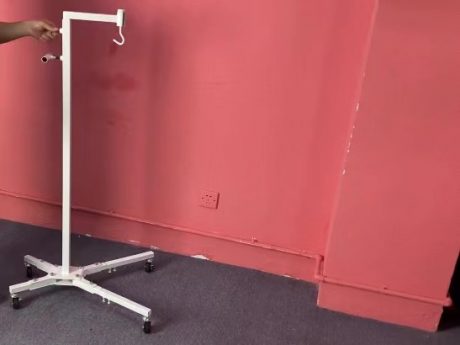

The hook must be facing the same side as the long iron rods of the bottom stand (as shown in the figure below). The upper part can be adjusted to suit the height of the doll (range between 100cm to 190cm). After confirming the height, fasten the screws and tighten the handle to finish the stand.
3. Activities and other instructions
Rolling method: After hanging the doll, the best way of rolling is to move backward with both hands under the weight limit. Pushing forward is not recommended. CAUTION: The stand rod may break due to the excessive weight of the doll and the excessive force. (Video position: 05:42)
Load Capacity: It is normal for the pole to bend slightly after the doll is hung on the stand. The maximum load capacity of the stand is 80kg.

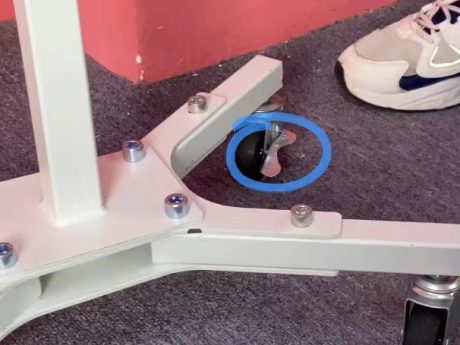

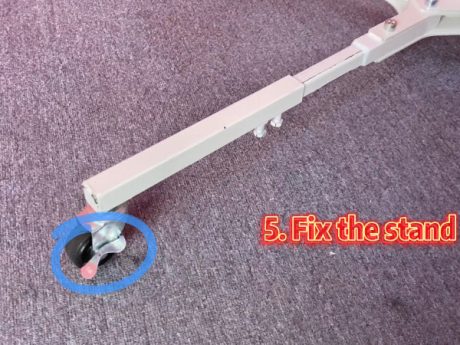

Locking Casters: After determining where the doll is parked, you can twist the switch on the side of the casters to stop the roll. The locking switch is located on the sides of the two wheels on the opposite corner. When the locking mechanisms are applied, the stand will be locked into place and cannot be moved. (Video position 05:48)
The final effect is shown in the figure:
